Log Server
What is Log Server?
A log server is used to collect logs of the management node. You can add a log server to the cloud and use the collected logs to locate errors and exceptions. This makes your O&M more efficient.
Add a Log Server

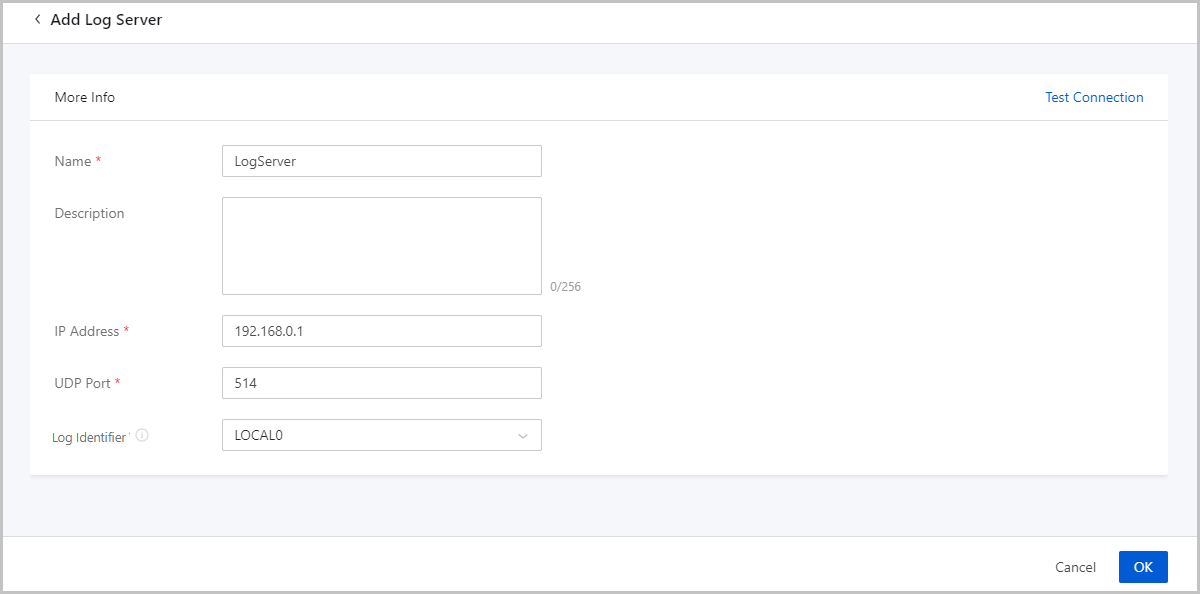

On the main menu of ZStack Cloud, choose . On the Log Server page, click Add Log Server. Then, the Add Log Server page is displayed.
On the displayed page, set the following parameters:
- Name: Enter a name for the log server. The name must be 1 to 128 characters in length and can contain Chinese characters, letters, digits, spaces, hyphens (-), underscores (_), periods (.), parenthesis (), colons (:), and plus signs (+) and cannot begin or end with spaces.
- Description: Optional. Enter a description for the log server.
- IP Address: Enter the IP address of the log server.
- UDP Port: Enter a port that uses the UDP protocol to provide services.
- Log Identifier: Specify the log identifier. The log identifier is customized in the local system based on your business needs. Valid values: LOCAL0 to LOCAL7. It has nothing to do with log severity such as DEBUG, INFO, and ERROR, but is used to match log servers.
Note: The log severity must be consistent with the setting configured in the log server. Otherwise, log information cannot be received as expected. - Test Connection: Check whether the configured IP address is reachable.Note:
- If the IP address is unreachable, check whether the IP address is correct, the network is normal, and the log severity setting is consistent.
-
Configure the settings as needed. Contact the log server provider for support in case of any email server related problems.
Next Chapter: SNMP Management
