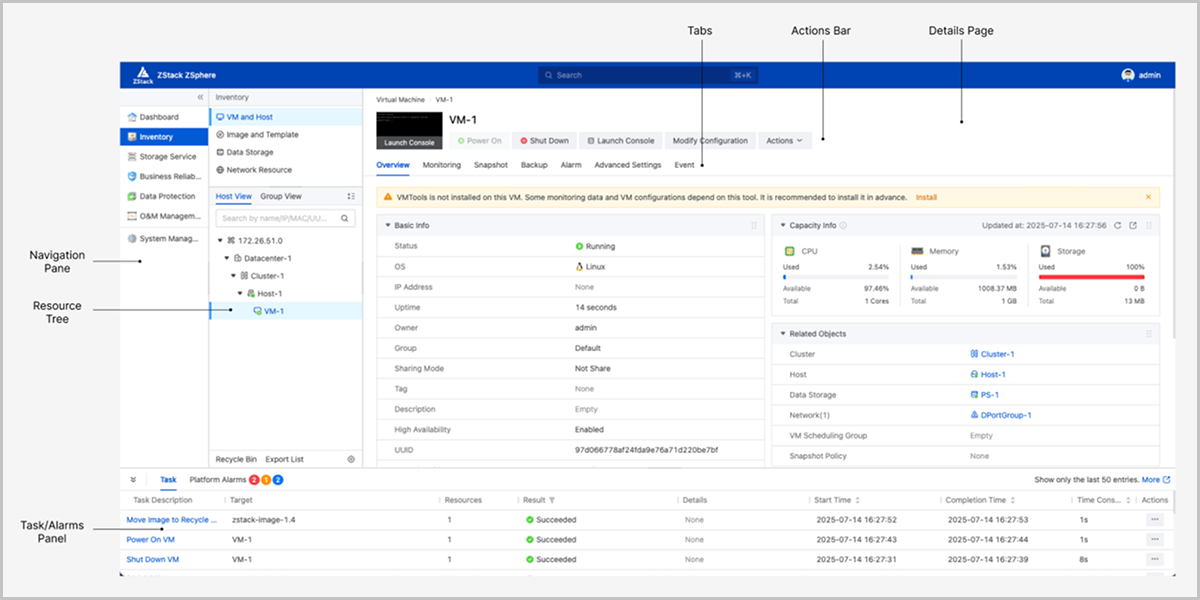

The user interface of ZStack ZSphere is designed to streamline resource management, offering intuitive navigation and intelligent contextual views for efficient resource creation, monitoring, and operations.Figure 1. User Interface
Navigation Pane: Located at the left of the interface, navigation pane provides quick access to platform's core functions, such as dashboard, inventory, system settings. The navigation pane and resource tree form the primary framework for system navigation. You can switch between modules seamlessly through the first and second-level menus in the navigation pane.
Resource Tree: Located under the secondary menu of the inventory, resource tree hierarchically organizes resources, such as virtual machines, data storage, distributed switches, and more. You can expand/collapse nodes for structured resource management and perform right-click actions.
Task/Alarms Panel: Displays platform tasks and triggered alarms at the interface bottom. The task/alarms panel is globally visible, ensuring you can promptly track task execution and changes in platform status. You can expand/collapse the panel.
Details Page: The main workspace of the interface. Resource details page displays comprehensive information about the selected resource, including overview, monitoring, associated resources, and more. Details page may be presented in card, list, or other formats.
Action Bar: Located at the top or side of the details page, action bar provides operation buttons that you can use to perform specific management actions on the current resource.
Tabs: Located near the top of the details page, tabs allow you to switch between different functional views within the same page. Tabs provide access to related resource tabs and, when combined with the action bar, you can achieve a seamless "select-view-operate" workflow.
