Environment Preparations
Prepare Software Packages
Before you install ZStack Cloud, prepare the following software packages:
Note: After you download the software packages, check the MD5 hash by using an MD5 checker to verify software integrity.
- ZStack Cloud ISO:
- SoftWare: ZStack-Cloud-x86_64-DVD-4.8.10-h84r.iso
- Download address: Click here
- ZStack Cloud installation package:
- Software: ZStack-Cloud-installer-4.8.10.bin
- Download address: Click here
Note: After you download the software packages, check the MD5 hash by using an MD5 checker to verify software integrity.Hardware Requirements
The following table takes a single server deployment (All-in-One) as an example to describe the configuration requirements over the server and other hardware devices for the installation and deployment of ZStack Cloud.
| Device | Configuration Requirements |
|---|---|
| Server |
|
| Network Switch |
|
Burn Image to U Disk
This topic describes how to use Rufus to burn the prepared ISO image file to a U disk.
- Use Rufus to open the ISO image file.
Open Rufus, select Disk or ISO image (Please select) from the Boot selection drop-down list, and click the Select button to open the downloaded ISO image file.

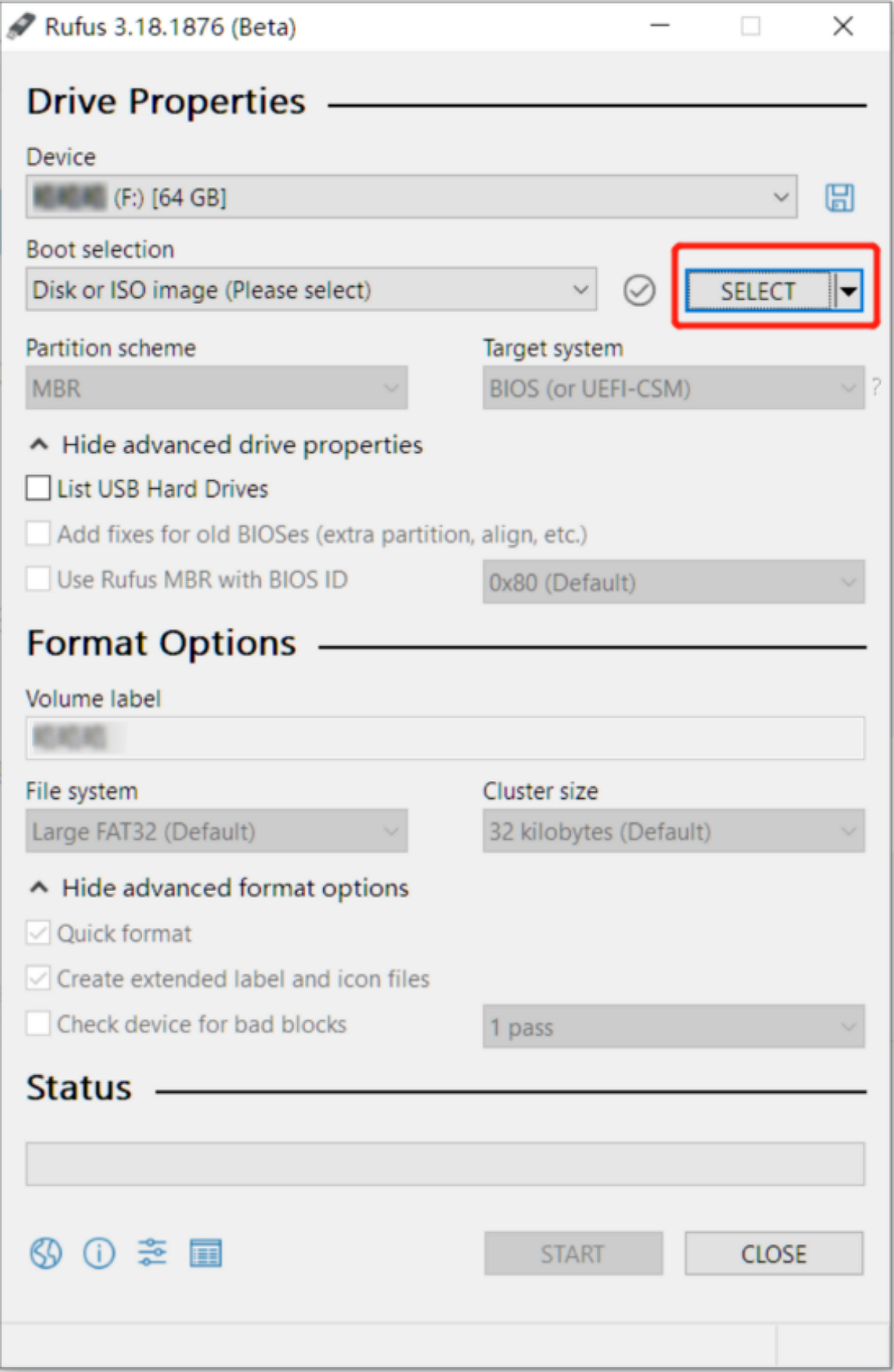

Figure 1. Use Rufus to Open ISO Image File
- Write the image.
After you select the ISO image, use default settings, and choose Start.

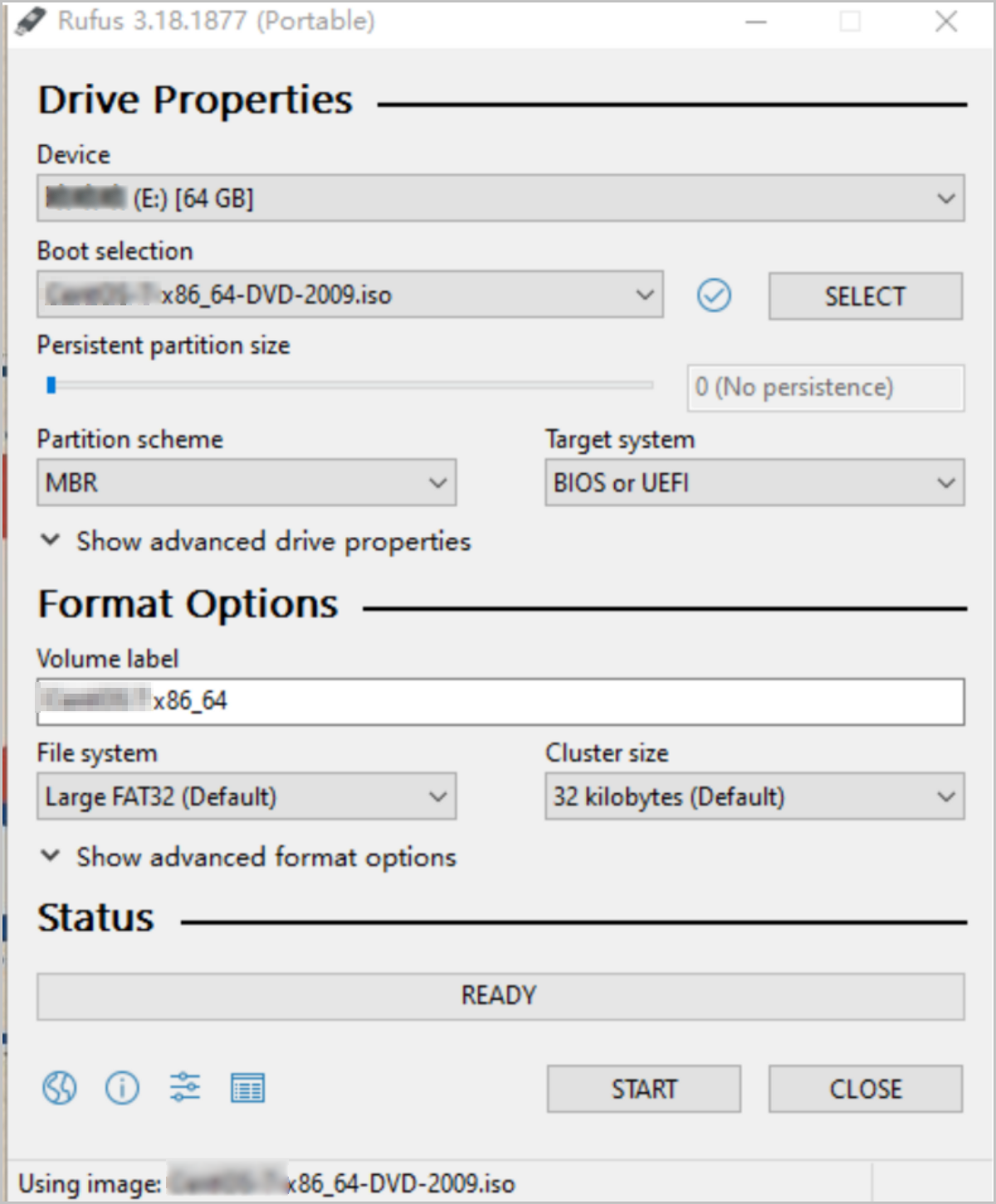

Figure 2. Write Disk Image on Rufus
- After you click Start, you will be reminded of the risk that the disk data will be formatted. Click OK to burn the image file. Note: Before you burn the image file, make sure that you backup the data on the U disk.

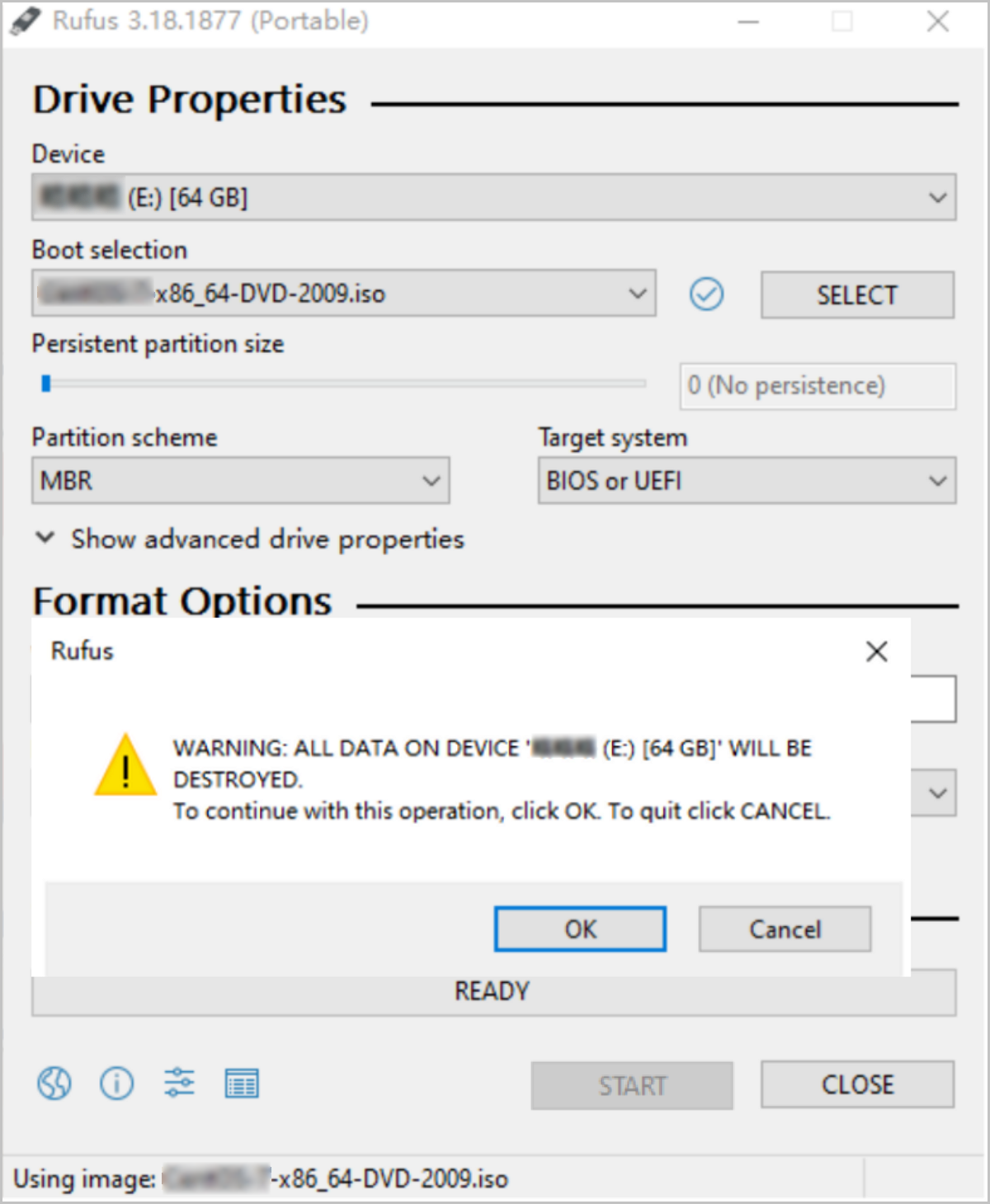

Figure 3. Confirm to Write ISO Image on Rufus
Next Chapter: Install Operating System
