Add a Host

On the main menu of ZStack Cloud, choose Resource Center > Hardware > Computing Facility > Host. On the Host page, click Add Host. Then, the Add Host page is displayed.

You can add a host manually or by importing a template. In this scenario, we take manual addition as an example. On the displayed Add Host page, set the following parameters:
  • Name: Enter a name for the host.
  • Description: Optional. Enter a description for the host.
  • Virtualization Technology: Select the hypervisor type of the server. You can select KVM or X-Dragon.
    • If the server applies the KVM virtualization technology, select KVM.
    • If the server applies the X-Dragon architecture, select X-Dragon.
  • Tag: Optional. Attach one or more tags to the host.
  • Cluster: Select the cluster where the host is located.
  • Host Info: Configure the host information such as the host IP and SSH port according to your actual needs. You can configure the host information by entering an IP address or an IP range.
  • Scan Host IOMMU Setting: Optional. Choose whether to scan the IOMMU setting of the host. The IOMMU setting is used in scenarios such as peripheral device passthrough and virtualization. Disable this feature for this scenario.
  • Intel EPT Hardware Assist: Optional. Choose whether to enable Intel EPT hardware assist for Intel CPUs to improve the CPU performance. By default, Intel EPT hardware assist is enabled.

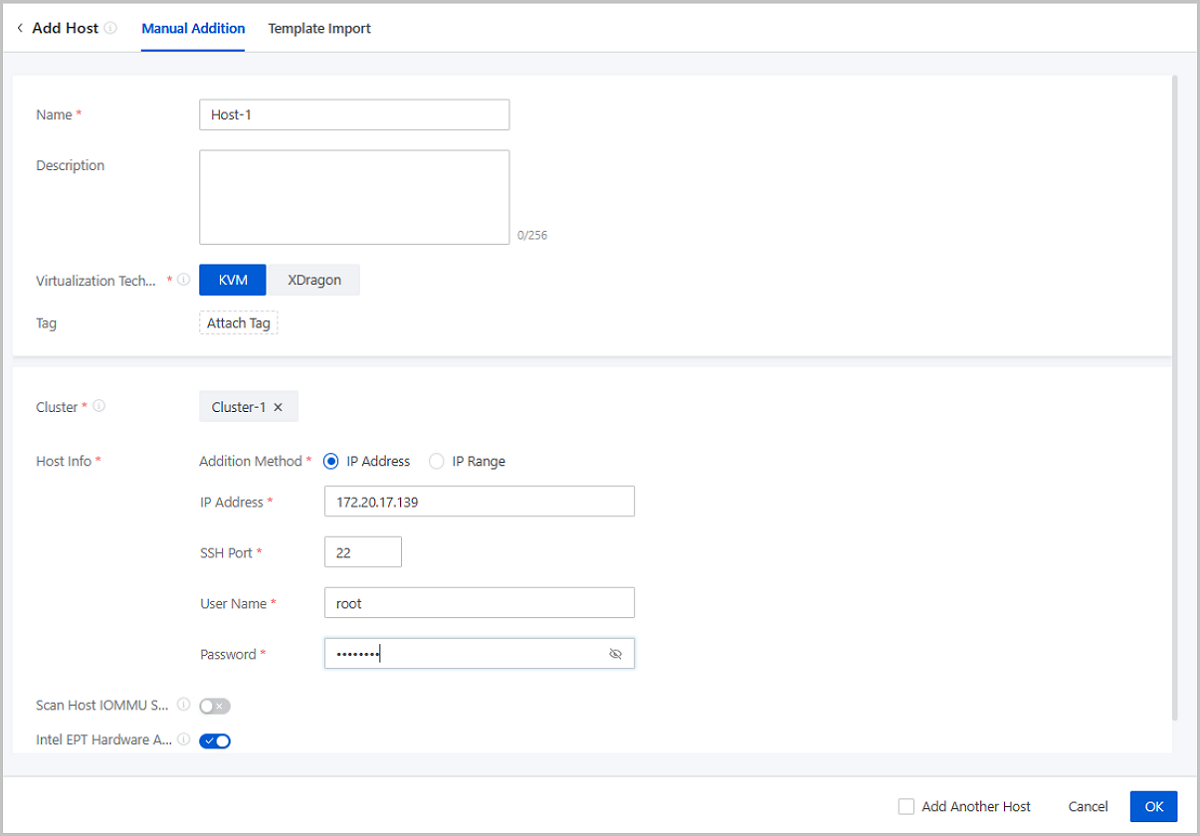

Figure 1. Add Host
