Migration Service (Plus)


Overview

ZStack provides the V2V Migration Service, allowing you to migrate VM systems and data from other virtualization platforms to the current cloud. Currently, with the V2V Migration Service, you can:
  • Migrate VM instances from the vCenter that you took over to the current cloud. The supported versions of the source vCenter platform include 5.0, 5.1, 5.5, 6.0, 6.5, and 6.7. Note that the version of vCenter Server must be consistent with that of ESXi Host.

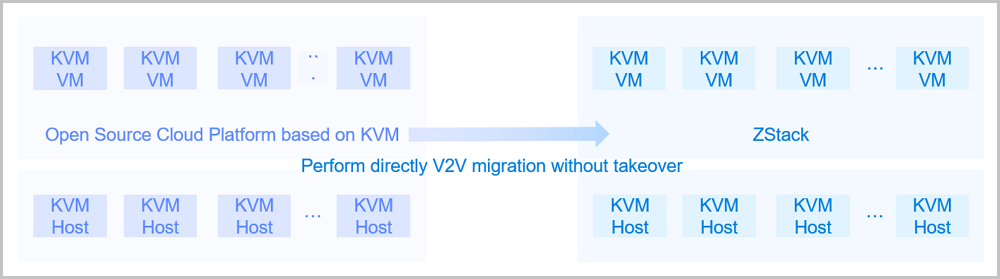

  • Migrate VM instances from a KVM cloud platform to the current cloud.
As shown in V2V Migration.

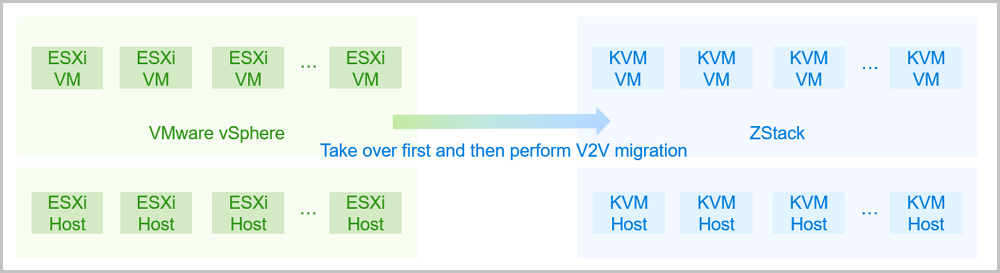

Figure 1. V2V Migration




The V2V Migration Service is a separate feature module. To use this feature, you need to purchase both the Base License and the Plus License of the V2V Migration Service. The Plus License cannot be used independently.

With the V2V Migration Service, you can:
  • Perform one-click V2V migrations in bulk for VM instances.
  • Only need to add a conversion host and create a V2V job. The cloud will do the rest of your work.
  • Configure an independent migration network and a network QoS for a conversion host to control transmission bottlenecks and to improve migration efficiencies.
  • Customize configurations for destination VM instances when you create a V2V job.
  • Monitor and manage the entire migration process in the visualized, well-designed UI.

Inventory

V2V Conversion Host Inventory

Name Description Optional Optional Value Starting Version
uuid The UUID. For more information, see Resource Property. 3.0.1
name The name. For more information, see Resource Property. 3.0.1
description The description. For more information, see Resource Property. Yes 3.0.1
hostUuid The host UUID. 3.0.1
type The volume type. 3.0.1
state The state of the volume backup. 3.0.1
storagePath The image storage path of the V2V migration. 3.0.1
groupBy Groups rows into subgroups based on values of columns or expressions. This field is equivalent to the Group By clause in MySQL, such as groupBy=type. Yes 3.0.1
createDate The creation date. For more information, see Resource Property. 3.0.1
lastOpDate The last operation date. For more information, see Resource Property. 3.0.1
userTags The user tags. For more information, see CreateUserTag. Yes 3.0.1
systemTags The system tags. For more information, see CreateSystemTag. Yes 3.0.1

Sample

{     "inventories": [         {             "createDate": "Sep 21, 2018 9:51:05 AM",             "description": "",             "hostUuid": "a039266264964f239196a15bec178a56",             "lastOpDate": "Sep 21, 2018 9:51:05 AM",             "name": "10.0.69.145",             "state": "Enabled",             "storagePath": "/tmp/zstack",             "type": "VMWARE",             "uuid": "d8281e94496947ff978e8157f04f6699"         }     ],     "success": true }
