Centralized Storage Snapshot Mechanism

This section introduces QCOW2 external snapshots.

1. Snapshot Chain and Snapshot Tree

   Typically, a single disk corresponds to one snapshot chain. ZStack Cloud supports creating a snapshot tree for a disk, where each branch of the tree represents a distinct snapshot chain.





   A snapshot tree includes the following information:

   • Snapshot Chain: A relational chain composed of a set of snapshots for a disk. Each branch of the snapshot tree is a snapshot chain.
   • Snapshot Node: An individual node in a snapshot chain, representing a single snapshot of the disk.
   • Snapshot Size: The storage space consumed by a snapshot. You can view the total size of all snapshots in the snapshot tree and the size of an individual snapshot node.

   Note:

   • For non-Ceph storage, the system allows a maximum of 128 nodes per snapshot chain by default. You can modify Maximum Incremental Volume Snapshot in the global settings to set the maximum length of the snapshot chain. For Ceph storage, the maximum number of snapshots per disk is 32, including both manual and automatic snapshots.
   • When a snapshot chain reaches its maximum length:
     • If you continue to create automatic snapshots, the system automatically deletes the earliest automatic snapshot.
     • If you continue to create manual snapshots, you must manually delete unneeded snapshots.
   • In production environments, we recommend that you keep the number of snapshots for a single disk below 5. Excessive snapshots can affect the I/O performance of VM instances or volumes, data security, and primary storage capacity. For long-term backup, use the backup service.
2. Create Snapshots

   When an external snapshot is created, a new empty QCOW2 file is generated. This new file has its backing file pointed to the original QCOW2 file. The original QCOW2 file is set to read-only, effectively turning it into a snapshot itself. Subsequent data writes are directed only to the new QCOW2 file. The creation of an external snapshot involves creating a new blank qcow2 file.

   • Create a single snapshot chain based on a backing file.





     Assume there is an original base image (Base). A VM instance 1 is created using this base image as a template. Then, snapshot 1A and 1B are created sequentially for VM instance 1.

     • Base Image: A pre-made disk image file containing a complete operating system and bootloader, serving as the Base (read-only).
     • VM Instance 1: A new empty file, Overlay-1, is created. Its backing file points to Base. Base remains read-only, thus becoming a snapshot. Subsequent data is written only to Overlay-1.
     • Snapshot 1A: A new empty file, Overlay-1A, is created. Its backing file points to Overlay-1. Overlay-1 is set to read-only, thus becoming a snapshot. Subsequent data is written only to Overlay-1A.
     • Snapshot 1B: A new empty file, Overlay-1B, is created. Its backing file points to Overlay-1A. Overlay-1A is set to read-only, thus becoming a snapshot. Subsequent data is written only to Overlay-1B. VM instance 1 uses the disk file corresponding to the last snapshot 1B in the snapshot chain, and snapshot 1B is Active.

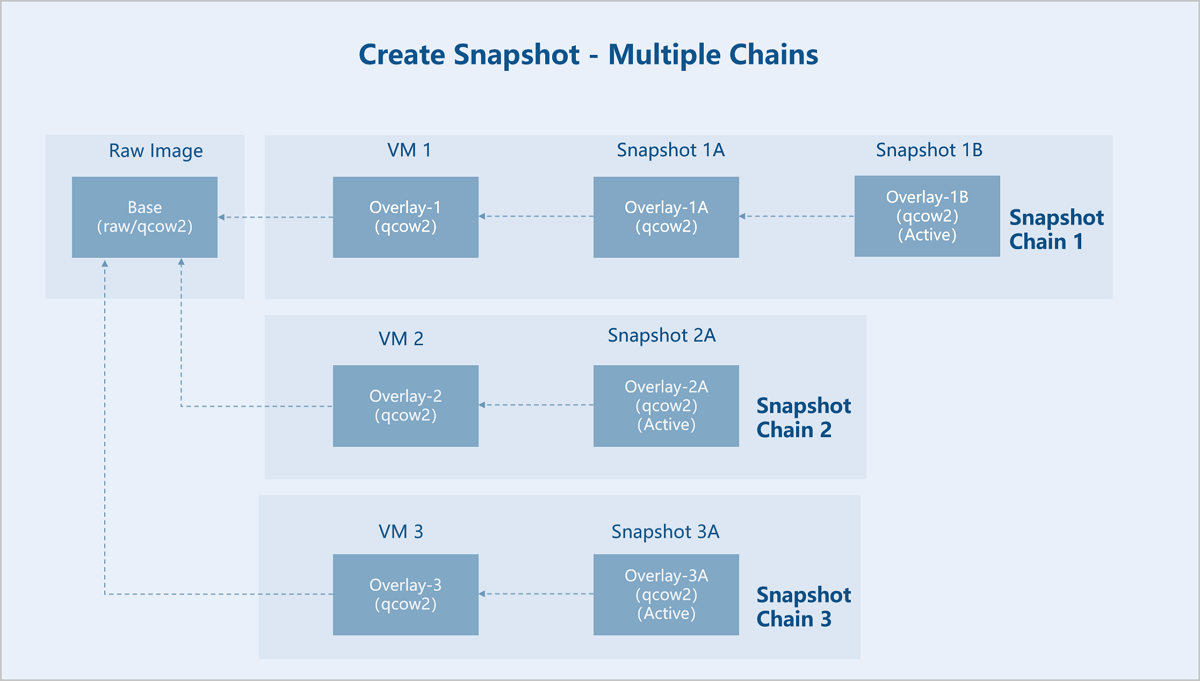

   • Create multiple snapshot chains based on backing files.





     Assume there is an original base image (Base). VM instance 1, VM instance 2, and VM instance 3 are created using this base image as a template. Then, snapshot 1A and snapshot 1B are created sequentially for VM 1, snapshot 2A is created for VM 2, and snapshot 3A is created for VM 3.

     • Base Image: A pre-made disk image file containing a complete operating system and bootloader, serving as the Base (read-only).
     • Snapshot Chain 1:
       • VM Instance 1: A new empty file, Overlay-1, is created. Its backing file points to Base. Base remains read-only, thus becoming a snapshot. Subsequent data is written only to Overlay-1.
       • Snapshot 1A: A new empty file, Overlay-1A, is created. Its backing file points to Overlay-1. Overlay-1 is set to read-only, thus becoming a snapshot. Subsequent data is written only to Overlay-1A.
       • Snapshot 1B: A new empty file, Overlay-1B, is created. Its backing file points to Overlay-1A. Overlay-1A is set to read-only, thus becoming a snapshot. Subsequent data is written only to Overlay-1B. VM 1 uses the disk file corresponding to the last snapshot 1B in snapshot chain 1, and snapshot 1B is Active.
     • Snapshot Chain 2:
       • VM Instance 2: A new empty file, Overlay-2, is created. Its backing file points to Base. Base remains read-only. Subsequent data is written only to Overlay-2.
       • Snapshot 2A: A new empty file, Overlay-2A, is created. Its backing file points to Overlay-2. Overlay-2 is set to read-only, thus becoming a snapshot. Subsequent data is written only to Overlay-2A. VM 2 uses the disk file corresponding to the last snapshot 2A in snapshot chain 2, and snapshot 2A is Active.
     • Snapshot Chain 3:
       • VM Instance 3: A new empty file, Overlay-3, is created. Its backing file points to Base. Base remains read-only. Subsequent data is written only to Overlay-3.
       • Snapshot 3A: A new empty file, Overlay-3A, is created. Its backing file points to Overlay-3. Overlay-3 is set to read-only, thus becoming a snapshot. Subsequent data is written only to Overlay-3A. VM 3 uses the disk file corresponding to the last snapshot 3A in snapshot chain 3, and snapshot 3A is Active.
3. Merge Snapshots

   External snapshots are interdependent, where each overlay file depends on its backing file. Each snapshot preserves its corresponding data, preventing the direct deletion of an individual snapshot to shorten the chain length. The chain length of external snapshots can be reduced through two methods: downward merging (Blockcommit) or upward merging (Blockpull).

   • Blockcommit

     Within the same snapshot chain, you can merge overlays to backing files.





     Assume there is an original base image (Base). VM instance 1 is created based on Base, and three interdependent external snapshots are created for VM instance 1: Snapshot 1A, Snapshot 1B, and Snapshot 1C. Now, Snapshot 1A and Snapshot 1B are merged downward into VM instance 1. As a result, the backing file of Snapshot 1C (Active) points directly to VM instance 1, so the snapshot chain is shortened. Snapshots 1A and 1B are no longer useful and can be deleted.

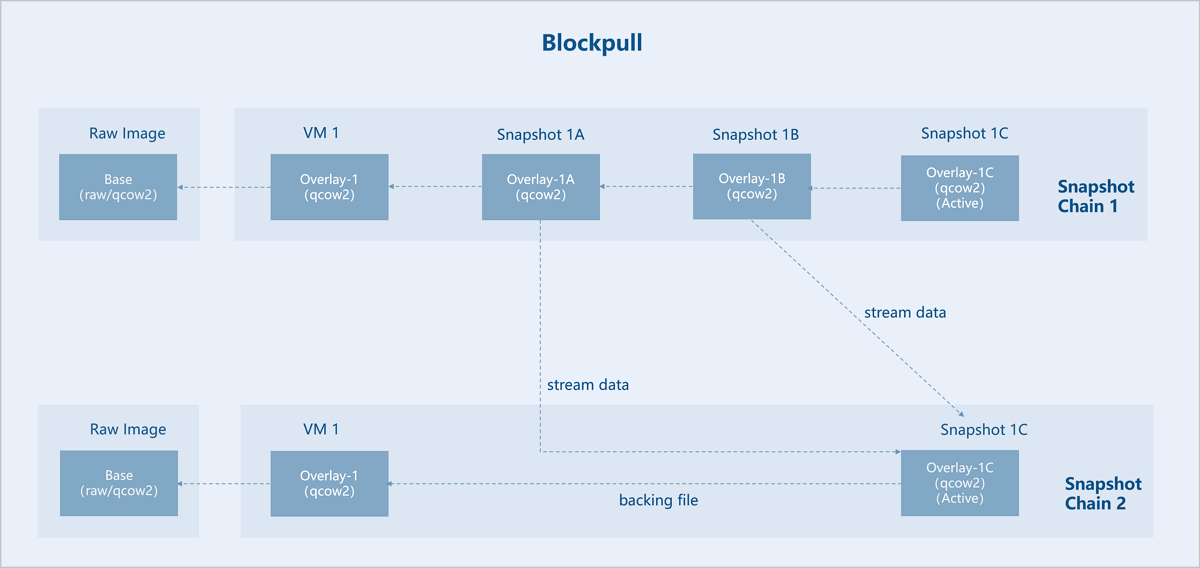

   • Blockpull

     Within the same snapshot chain, you can merge backing files to overlays.





     Assume there is an original base image (Base). VM instance 1 is created based on Base, and three interdependent external snapshots are created for VM instance 1: Snapshot 1A, Snapshot 1B, and Snapshot 1C. Now, Snapshot 1A and Snapshot 1B are merged upward into Snapshot 1C (Active). As a result, the backing file of Snapshot 1C (Active) points directly to VM instance 1, so the snapshot chain is shortened. Snapshots 1A and 1B are no longer useful and can be deleted.

Distributed Storage Snapshot Mechanism

Ceph enterprise edition uses ROW snapshot technology. Self-developed distributed storage uses COW snapshots. For more information, see Volume Snapshot Protection.
